Cache Controller Design Verilog Code

Cache is a small piece of memory present in CPUs used to improve memory access times. Let us see how to design a cache controller in Verilog to control such a cache.

The reader is assumed to have a basic knowledge of memory organization and cache. This cache controller design has been done in this book Computer Organization and Design - by David A. Patterson and John L. Henessy. In the 5th edition of this book, section 5.9 describes a Finite State Machine to control a simple cache.

We will go ahead with a similar design model but write a unique Verilog code.

Specifications:

• Direct Mapped Cache
• Block size = 4 words (1 word = 4 bytes)
• Cache size = 1024 blocks
• Write-back scheme

Structure:

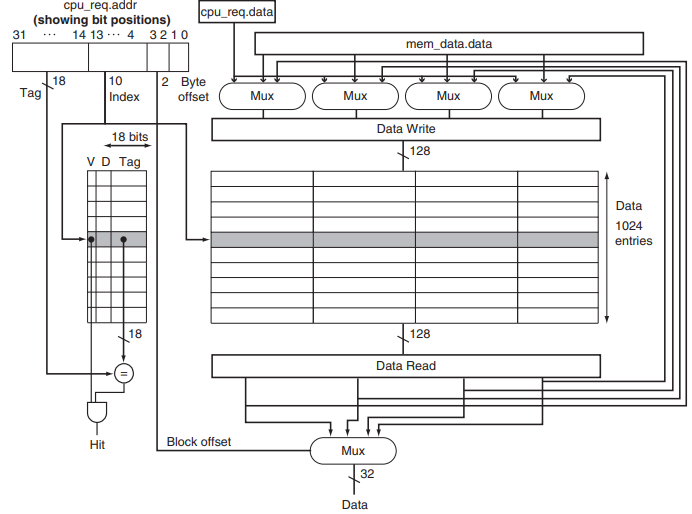

Image Source: Computer Organization and Design by Patterson and Henessy - 5th edition



Basically, we have two interfaces for the cache controller: CPU interface and memory interface.
(Note: We will use the term memory to refer to main memory and not cache memory.)

The cache controller has to get requests from the CPU. The controller will perform the required write/read from the cache.

Write operation:

For a write operation, the dirty bit has to be set during writes due to write-back scheme. There are 2 cases to be checked during write operations.

1. If the dirty bit is not set for the tag in cache, then the write data can be directly written to the cache location.

2. If the dirty bit is set for the tag in cache, it means the data present in this tag location in cache, has to be first written to memory. Then we can replace the write data with the current tag location in cache.

Read operation:

If the cache was able to retrieve the required read data, it is termed a cache hit and the request will be processed.

If not, it is termed a cache miss and the cache controller now communicates with the main memory (memory interface) to perform the read operation.

Here again we have 2 cases:

1. If the dirty bit is not set for the tag in cache, then memory can read data from the requested address and replace the data in the corresponding tag location in cache.

2. If the dirty bit is set for the tag in cache, it means the data present in this tag location in cache, has to be first written to memory. Then only we can replace it with the newly requested data from memory.

FSM Logic:

We have 4 states for the FSM:

• IDLE: Wait in this state until a valid CPU request is received.
• COMPARE_TAG: Explore the following possibilities
  Read hit? Then cache is ready with read data. Set tag and valid bit.
  Write? Check for dirty bit and perform action. Set tag, valid bit and dirty bit at the end.
  Read miss? Now check for dirty bit.
                      Clean? Goto ALLOCATE
                      Dirty? Goto WRITE_BACK
• ALLOCATE: Here, we wait for the memory to provide us with read data and update the cache.
• WRITE_BACK: Here, we perform the write operation first to memory for the old data that had set the dirty bit. After that, obtain the desired read data for current address and update the cache.

Verilog Code:

module cache_controller (
	clk,
	rst_n,
	cpu_req_addr,  //CPU signals
	cpu_req_datain,
	cpu_req_dataout,
	cpu_req_rw,
	cpu_req_valid,
	cache_ready,   //Cache ready
	mem_req_addr,  //Main memory signals
	mem_req_datain,
	mem_req_dataout,
	mem_req_rw,
	mem_req_valid,
	mem_req_ready
);

parameter IDLE        = 2'b00;
parameter COMPARE_TAG = 2'b01;
parameter ALLOCATE    = 2'b10;
parameter WRITE_BACK  = 2'b11;

input clk;
input rst_n;

//CPU request to cache controller
input [31:0] cpu_req_addr;
input [127:0] cpu_req_datain;
output [31:0] cpu_req_dataout;
input cpu_req_rw; //1=write, 0=read
input cpu_req_valid;

//Main memory request from cache controller
output [31:0] mem_req_addr;
input [127:0] mem_req_datain;
output [31:0] mem_req_dataout;
output mem_req_rw;
output mem_req_valid;
input mem_req_ready;

//Cache ready
output cache_ready;

//Cache consists of tag memory and data memory
//Tag memory = valid bit + dirty bit + tag
reg [23:0] tag_mem [1023:0];
//Data memory holds the actual data in cache
reg [127:0] data_mem [1023:0];

reg [1:0] present_state, next_state;
reg [31:0] cpu_req_dataout, next_cpu_req_dataout;
reg [31:0] cache_read_data;
reg cache_ready, next_cache_ready;
reg [31:0] mem_req_addr, next_mem_req_addr;
reg mem_req_rw, next_mem_req_rw;
reg mem_req_valid, next_mem_req_valid;
reg [127:0] mem_req_dataout, next_mem_req_dataout;
reg write_datamem_mem; //write operation from memory
reg write_datamem_cpu; //write operation from cpu
reg tagmem_enable;
reg valid_bit, dirty_bit;

reg [31:0] cpu_req_addr_reg, next_cpu_req_addr_reg;
reg [127:0] cpu_req_datain_reg, next_cpu_req_datain_reg;
reg cpu_req_rw_reg, next_cpu_req_rw_reg;

wire [17:0] cpu_addr_tag;
wire [9:0] cpu_addr_index;
wire [1:0] cpu_addr_blk_offset;
wire [1:0] cpu_addr_byte_offset;
wire [19:0] tag_mem_entry;
wire [127:0] data_mem_entry;
wire hit;

//CPU Address = tag + index + block offset + byte offset
assign cpu_addr_tag         = cpu_req_addr_reg[31:14];
assign cpu_addr_index       = cpu_req_addr_reg[13:4];
assign cpu_addr_blk_offset  = cpu_req_addr_reg[3:2];
assign cpu_addr_byte_offset = cpu_req_addr_reg[1:0];

assign tag_mem_entry  = tag_mem[cpu_addr_index];
assign data_mem_entry = data_mem[cpu_addr_index];
assign hit = tag_mem_entry[19] && (cpu_addr_tag == tag_mem_entry[17:0]);

initial begin
$readmemh("tag_memory.mem", tag_mem);	//load initial values for tag memory
end

initial begin
$readmemh("data_memory.mem", data_mem);	//load initial values for data memory
end

always @ (posedge clk or negedge rst_n)
begin
  if(!rst_n)
  begin
	tag_mem[cpu_addr_index]  <= tag_mem[cpu_addr_index];
	data_mem[cpu_addr_index] <= data_mem[cpu_addr_index];
	present_state   	<= IDLE;
	cpu_req_dataout 	<= 32'd0;
	cache_ready     	<= 1'b0;
	mem_req_addr    	<= 32'd0;
	mem_req_rw      	<= 1'b0;
	mem_req_valid   	<= 1'b0;
	mem_req_dataout 	<= 128'd0;
	cpu_req_addr_reg	<= 1'b0;
	cpu_req_datain_reg  	<= 128'd0;
	cpu_req_rw_reg  	<= 1'b0;
  end
  else
  begin
    	tag_mem[cpu_addr_index]  <= tagmem_enable ? {4'd0,valid_bit,dirty_bit,cpu_addr_tag} : tag_mem[cpu_addr_index];
   	data_mem[cpu_addr_index] <= write_datamem_mem ? mem_req_datain : write_datamem_cpu ? cpu_req_datain_reg : data_mem[cpu_addr_index];
	present_state   	<= next_state;
	cpu_req_dataout 	<= next_cpu_req_dataout;
	cache_ready     	<= next_cache_ready;
	mem_req_addr    	<= next_mem_req_addr;
	mem_req_rw      	<= next_mem_req_rw;
	mem_req_valid   	<= next_mem_req_valid;
	mem_req_dataout 	<= next_mem_req_dataout;
	cpu_req_addr_reg	<= next_cpu_req_addr_reg;
	cpu_req_datain_reg  	<= next_cpu_req_datain_reg;
	cpu_req_rw_reg  	<= next_cpu_req_rw_reg;
  end
 end

always @ (*)
begin
write_datamem_mem    = 1'b0;
write_datamem_cpu    = 1'b0;
valid_bit            = 1'b0;
dirty_bit            = 1'b0;
tagmem_enable        = 1'b0;
next_state           = present_state;
next_cpu_req_dataout = cpu_req_dataout;
next_cache_ready     = 1'b1;
next_mem_req_addr    = mem_req_addr;
next_mem_req_rw      = mem_req_rw;
next_mem_req_valid   = mem_req_valid;
next_mem_req_dataout = mem_req_dataout;
next_cpu_req_addr_reg  = cpu_req_addr_reg;
next_cpu_req_datain_reg  = cpu_req_datain_reg;
next_cpu_req_rw_reg  = cpu_req_rw_reg;

case (cpu_addr_blk_offset)
	2'b00: cache_read_data   = data_mem_entry[31:0];
	2'b01: cache_read_data   = data_mem_entry[63:32];
	2'b10: cache_read_data   = data_mem_entry[95:64];
	2'b11: cache_read_data   = data_mem_entry[127:96];
	default: cache_read_data = 32'd0;
endcase

case(present_state)
  IDLE:
  begin
    if (cpu_req_valid)
    begin
    next_cpu_req_addr_reg  = cpu_req_addr;
    next_cpu_req_datain_reg  = cpu_req_datain;
    next_cpu_req_rw_reg  = cpu_req_rw;
    next_cache_ready = 1'b0;
    next_state = COMPARE_TAG;
    end
    else
    next_state = present_state;
  end

  COMPARE_TAG:
  begin
    if (hit & !cpu_req_rw_reg) //read hit
    begin
    next_cpu_req_dataout = cache_read_data;
    next_state = IDLE;
    end
    else if (!cpu_req_rw_reg) //read miss
    begin
    next_cache_ready = 1'b0;
	  if (!tag_mem_entry[18]) //clean, read new block from memory
	  begin
	  next_mem_req_addr = cpu_req_addr_reg;
	  next_mem_req_rw = 1'b0;
	  next_mem_req_valid = 1'b1;
	  next_state = ALLOCATE;
	  end
	  else 					  //dirty, write cache block to old memory address, then read this block with curr addr
	  begin
	  next_mem_req_addr = {tag_mem_entry[17:0],cpu_addr_index,4'd0}; //old tag, current index, offset 00
	  next_mem_req_dataout = data_mem_entry;
	  next_mem_req_rw = 1'b1;
	  next_mem_req_valid = 1'b1;
	  next_state = WRITE_BACK;
	  end
    end
    else //write operation
    begin
	  if (tag_mem_entry[18]) //dirty, write cache block to old memory address and then write new cache entry
	  begin
          next_cache_ready = 1'b0;
	  next_mem_req_addr = {tag_mem_entry[17:0],cpu_addr_index,4'd0};
	  next_mem_req_dataout = data_mem_entry;
	  next_mem_req_rw = 1'b1;
	  next_mem_req_valid = 1'b1;
	  next_state = WRITE_BACK;
	  end
          else
	  begin
          valid_bit = 1'b1;
          dirty_bit = 1'b1;
          tagmem_enable = 1'b1;
          write_datamem_cpu = 1'b1;
          next_state = IDLE;
	  end
  end
  end

  ALLOCATE:
  begin
  next_mem_req_valid = 1'b0;
  next_cache_ready = 1'b0;
	if(!mem_req_valid && mem_req_ready)	//wait for memory to be ready with read data
	begin
	write_datamem_mem = 1'b1; //write to data mem
    	valid_bit = 1'b1;	//make the tag mem entry valid
    	dirty_bit = 1'b0;
    	tagmem_enable = 1'b1;
	next_state = COMPARE_TAG;
	end
	else
	begin
	next_state = present_state;
	end
  end

  WRITE_BACK:
  begin
  next_cache_ready = 1'b0;
  next_mem_req_valid = 1'b0;
	if(!mem_req_valid && mem_req_ready)  //write is done, now read
	begin
	valid_bit = 1'b1;
	dirty_bit = 1'b0;
	tagmem_enable = 1'b1;
	next_mem_req_addr = cpu_req_addr_reg;
	next_mem_req_rw = 1'b0;
	next_mem_req_valid = !cpu_req_rw_reg;
        next_state = cpu_req_rw_reg ? COMPARE_TAG : ALLOCATE;
	end
	else
	begin
	next_state = present_state;
	end
  end

endcase
end
endmodule

Testbench:

module cache_controller_tb;

reg clk;
reg rst_n;
reg [31:0] cpu_req_addr;
reg [127:0] cpu_req_datain;
wire [31:0] cpu_req_dataout;
reg cpu_req_rw; //1=write, 0=read
reg cpu_req_valid;

wire [31:0] mem_req_addr;
reg [127:0] mem_req_datain;
wire [127:0] mem_req_dataout;
wire mem_req_rw;
wire mem_req_valid;
reg mem_req_ready;

cache_controller dut (
    .clk	       (clk),
    .rst_n             (rst_n),
    .cpu_req_addr      (cpu_req_addr),
    .cpu_req_datain    (cpu_req_datain),
    .cpu_req_dataout   (cpu_req_dataout),
    .cpu_req_rw        (cpu_req_rw),
    .cpu_req_valid     (cpu_req_valid),
    .cache_ready       (cache_ready),
    .mem_req_addr      (mem_req_addr),
    .mem_req_datain    (mem_req_datain),
    .mem_req_dataout   (mem_req_dataout),
    .mem_req_rw        (mem_req_rw),
    .mem_req_valid     (mem_req_valid),
    .mem_req_ready     (mem_req_ready)
	);

always #5 clk = ~clk;

task reset_values ();
begin
  clk = 1'b1; rst_n = 1'b0;
  cpu_req_addr = 32'd0; cpu_req_datain = 128'd0; cpu_req_rw = 1'b0; cpu_req_valid = 1'b0;
  mem_req_datain = 128'd0; mem_req_ready = 1'b1;
  #20 rst_n = 1'b1;
end
endtask

task write_cpu (input [31:0]addr, input [127:0]data);
begin
  #20 cpu_req_addr = addr; cpu_req_rw = 1'b1; cpu_req_valid = 1'b1; cpu_req_datain = data; //write to cache (AB)
  #10 cpu_req_addr = 32'd0; cpu_req_rw = 1'b0; cpu_req_valid = 1'b0; cpu_req_datain = 128'd0;
end
endtask

task read_cpu (input [31:0]addr);
begin
  #20 cpu_req_addr = addr; cpu_req_rw = 1'b0; cpu_req_valid = 1'b1;
  #10 cpu_req_addr = 32'd0; cpu_req_rw = 1'b0; cpu_req_valid = 1'b0;
end
endtask

initial begin
  reset_values();
  write_cpu (332'hAB00,128'h1122);  //write
  read_cpu  (32'hAB00);		    //read hit (same tag, same index)
  read_cpu  (32'hBB00);		    //read miss, clean (same tag, diff index)
  @(negedge mem_req_valid) mem_req_ready = 1'b0;
  #20 mem_req_datain = 128'h3344; mem_req_ready = 1'b1;

  read_cpu  (32'hEB00);		   //read miss, dirty (diff tag, same index)
  @(negedge mem_req_valid) mem_req_ready = 1'b0;
  #20 mem_req_ready = 1'b1;
  @(negedge mem_req_valid) mem_req_ready = 1'b0;
  #30 mem_req_datain = 128'h5566; mem_req_ready = 1'b1;
end
endmodule

Simulation Waveform:

The sequence of events taking place in the waveform is described below:

1. A valid CPU write request arrives with address 'hAB00. The write data is written to the cache location specified by the tag and index. But it is not yet written to main memory since it is a write back scheme (dirty bit is set to 1)
2. Next, a CPU read request arrives with the same address. Since the data is already present in cache, it is a cache hit and the previously written data is read out.
3. Next, a CPU read request arrives with the same tag but a different index from the first request. So it is a read miss and clean, due to which data is read from memory and sent out. (Memory has been loaded with some initial values)
4. Next, a CPU read request arrives with a different tag but the same index as the first request. This is a case of read miss and dirty. So the cache data is first written to memory at the old address, then the required data is read out from memory at current address and sent out.

Conclusion:

Thus we have designed a simple cache controller model for a cache memory in Verilog.
